Product Description:

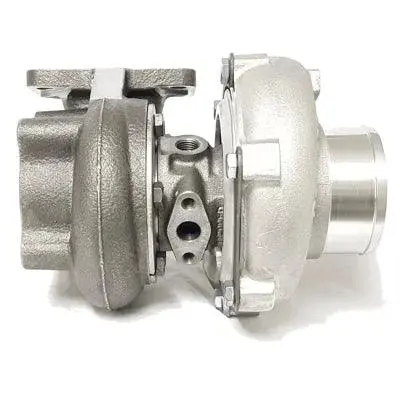

- Garrett GEN2 GTX3076R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 Bar internal wastegate actuator. Advanced GEN2 billet compressor wheel capable of 750HP!
Product Features:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
Product Specifications:
- Compressor Wheel Inducer: 58 mm
- Compressor Wheel Exducer: 76 mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60 mm
- Turbine Wheel Exducer: 55 mm
- Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant in/out: ATP-RB2-002
- Oil feed: ATP-RB2-001
- Oil drain flange: ATP-VSRT-014
- Oil drain gasket: GRT-GSK-008
- NOTE: Alternate coolant and oil fittings and flanges, sold separately, are needed to connect the GT/GTX turbo.
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
- 851154-5001S
