Description
Brand: CP-Carrillo
Manufacturer’s Part Number: BC1026-STD
Part Type: Pistons
Product Line: CP Pistons Bullet Series Piston and Ring Kits
Automotive Fittings Part Number: CNN-BC1026-STD
Piston Rings Included: Yes
Bore (in.): 4.000 in.
Bore (mm): 101.600mm
Stroke: 3.750 in.
Rod Length: 5.700 in.

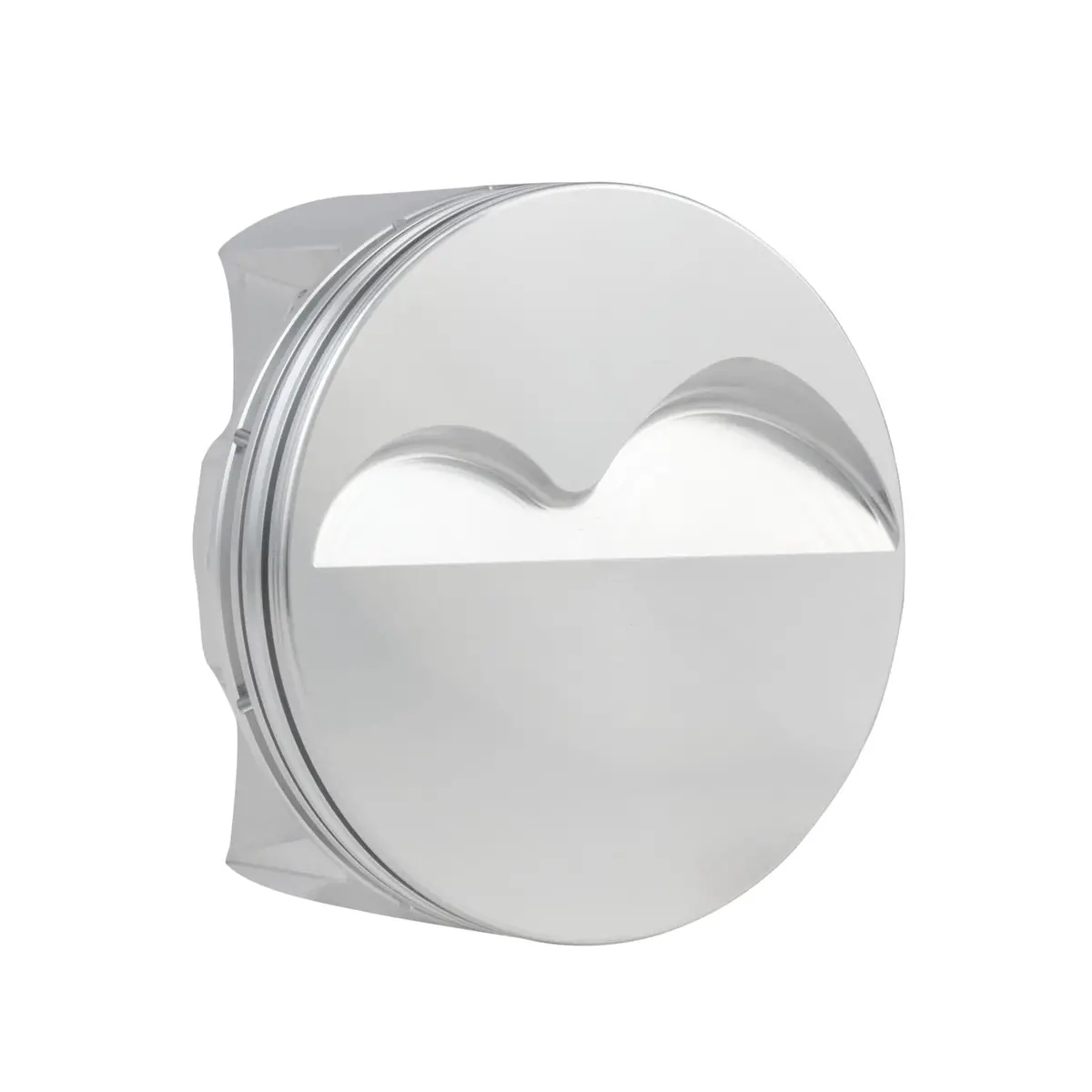

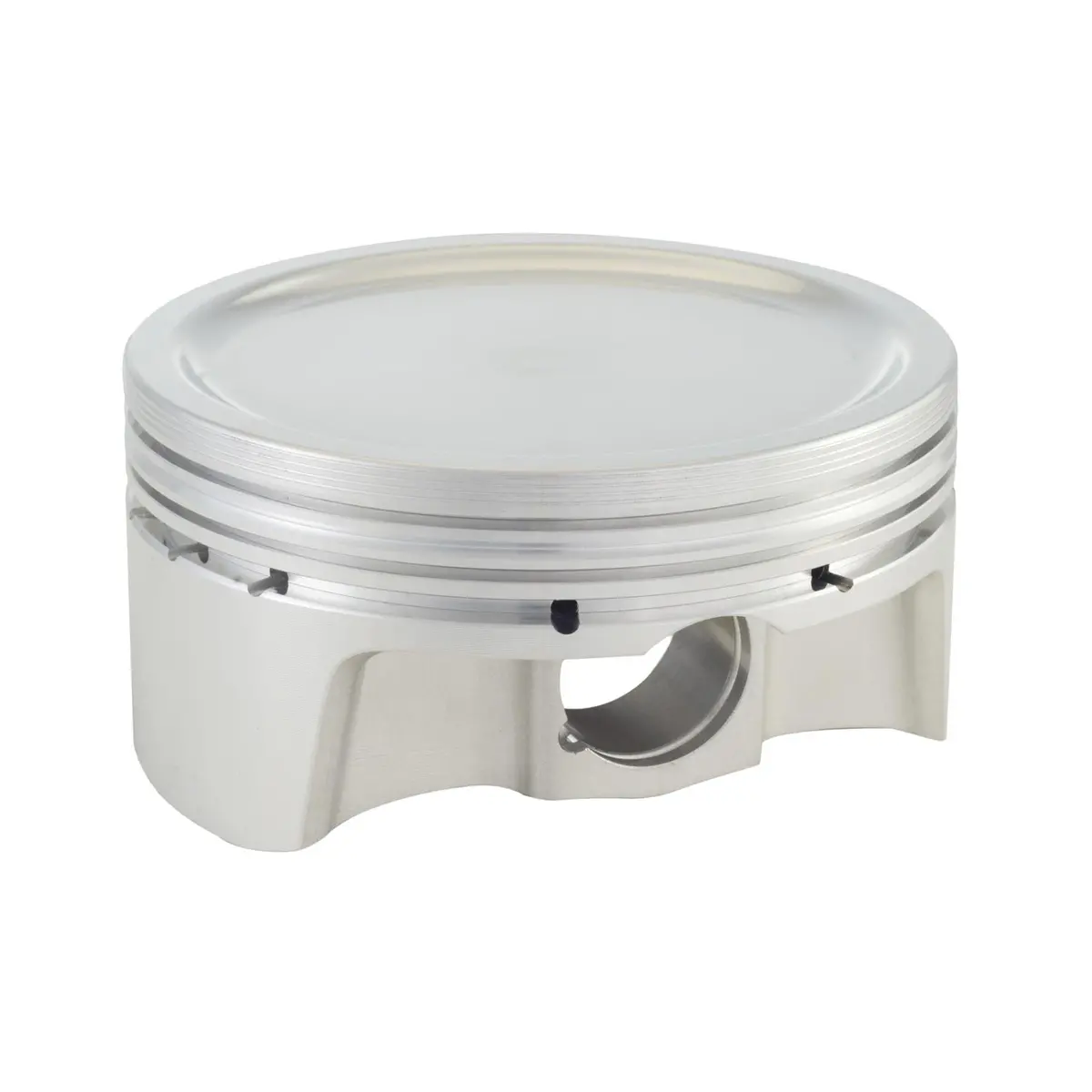

Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.425 in.
Piston Head Volume (cc): +6.83cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
File Fit: Yes
Gapless: No
Top Ring Thickness: 1.5mm
Top Ring Material: Steel
Top Ring Facing Material: Plasma-moly
Second Ring Thickness: 1.5mm
Second Ring Material: Cast iron
Second Ring Facing Material: Phosphate coated
Oil Ring Thickness: 3.0mm
Oil Ring Tension: Low
Remanufactured: No
Quantity: Sold individually.
Description:
CP Pistons Bullet Series piston and ring kits are value-packed replacements. Offered at an affordable price, these high-quality pistons incorporate everything that has made CP an industry leader—extensive research, computer-designed forgings, tight tolerances, and rigorous quality control. Having Bullet Series pistons means you no longer have to compromise high performance, even on a tight budget. They’re manufactured from 2618 forged aluminum alloy for strength and durability.
Additional features include:
* Piston balance 1 gram
* Dual forced pin oilers
* Contact reduction grooves
* Accumulator groove
* Contemporary high performance ring sets
* Forged side relief
* Chromoly wrist pins with wire locks
