ICT Billet LS Truck OEM-Location Alternator and Power Steering Bracket Kit for LQ4, LQ9, 4.8L, 5.3L, and 6.0L Engines

Description

Camaro R4 A/C Compressor Heavy Duty Bracket Kit for LS1 LSX

Compatible with: 1998-02 Camaro LS1 (GTO any year) crank pulley (ICT # BAL200)

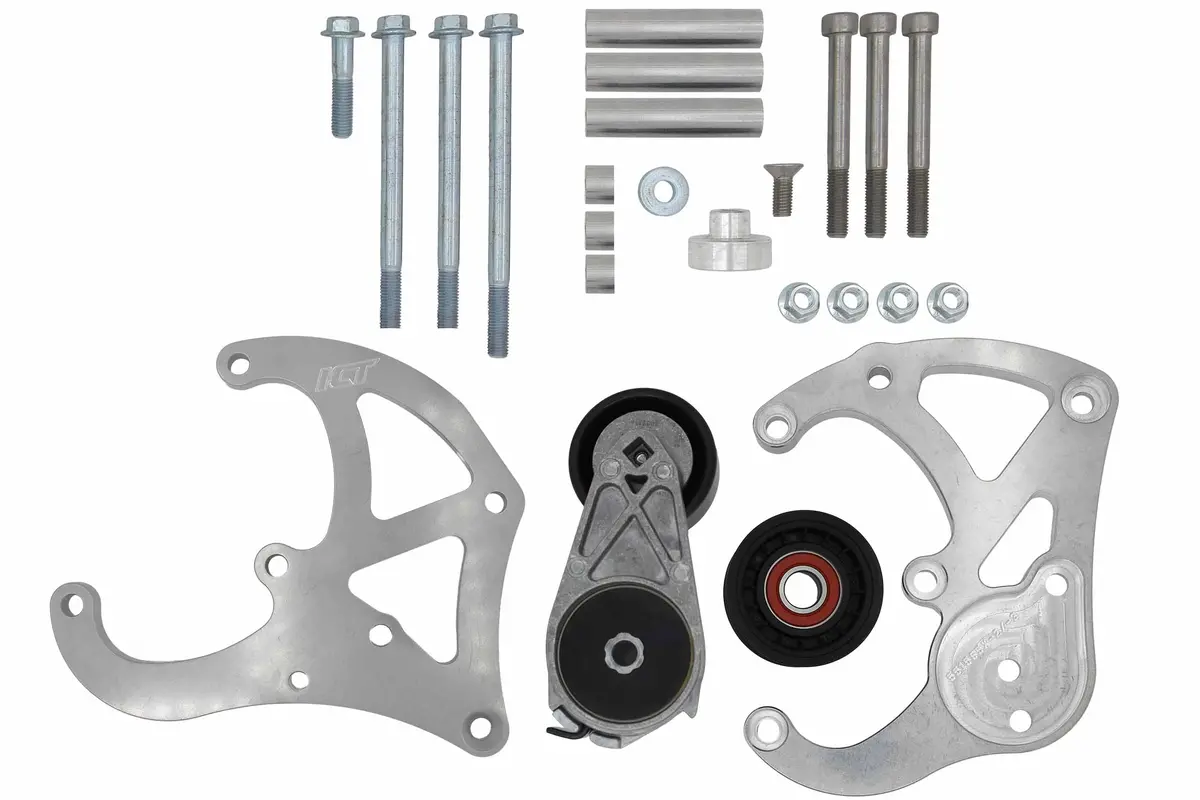

• Includes: A/C compressor bracket, belt tensioner, and mounting hardware
• Can be used with ACDELCO A/C compressor Part # ICT # ACC501 (has 4.25″ pulley)
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

Belt length with 105 amp alternator and ICT 551521-2: 970K6 (97.0 inch) Belt length with 105 amp alternator and ICT 551669-2: 980K6 (98.0 inch) This does NOT use the factory style LS vehicle a/c compressors (25891791) If using a Camaro R4 A/C compressor (has larger 5″ diameter pulley) then bolt heads will need clearanced at the compressor pulley. Manual belt tensioners are available separately or can be requested instead of the automatic tensioner – Part# 551479

Belt lengths when used with:

• 551668-2 735K6 with 105amp alt
