ICT Billet OEM-Location Alternator and Power Steering Bracket for LS Truck Engines (LQ4, LQ9, 4.8L, 5.3L, 6.0L)

Description

LS Factory Truck Alternator & Power Steering Pump Location Bracket

This kit uses Truck/SUV (or LS3/L99 Camaro) crank pulley

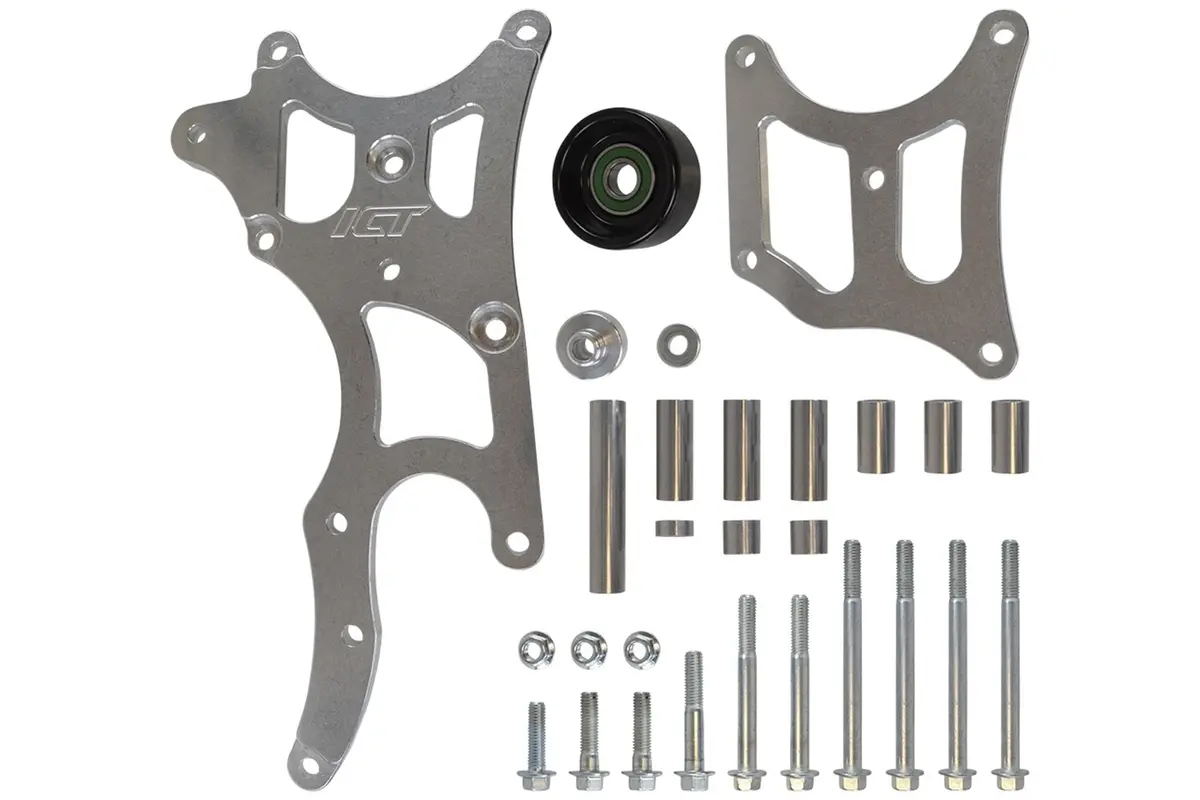

• Includes: bracket, idler pulley, and mounting hardware
• Can be used with standard (105amp) or high amp (145/160amp) alternators.
• Compatible with a factory truck power steering pump and pulley (ICT# PUM300 and PUL300)
• Integrated factory idler pulley location or use idler relocation position, factory idler location ear can be trimmed using the engraved cut line on back of the front bracket
• If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

Belt length with standard (105amp) or high amp 145/160amp) alternators: 923K6 (92.3 inch)Belt length with standard (105amp) or high amp 145/160amp) alternators and using the idler relocation option: 775K6 (77.5 inch)
