RaceX Cast-Aluminum LS1 Oil Pan for Chevrolet Camaro Z28 (1998–2002); Compatible with Optional Oil Pickup Assembly

Description

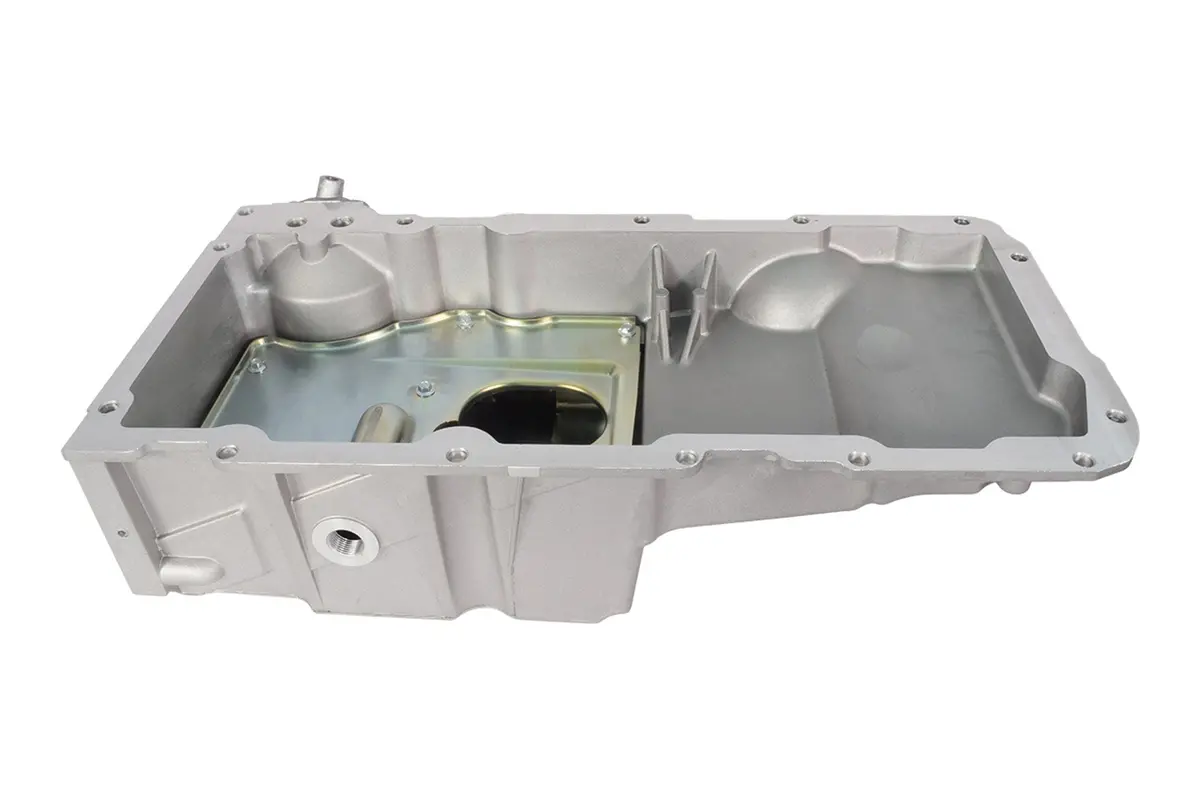

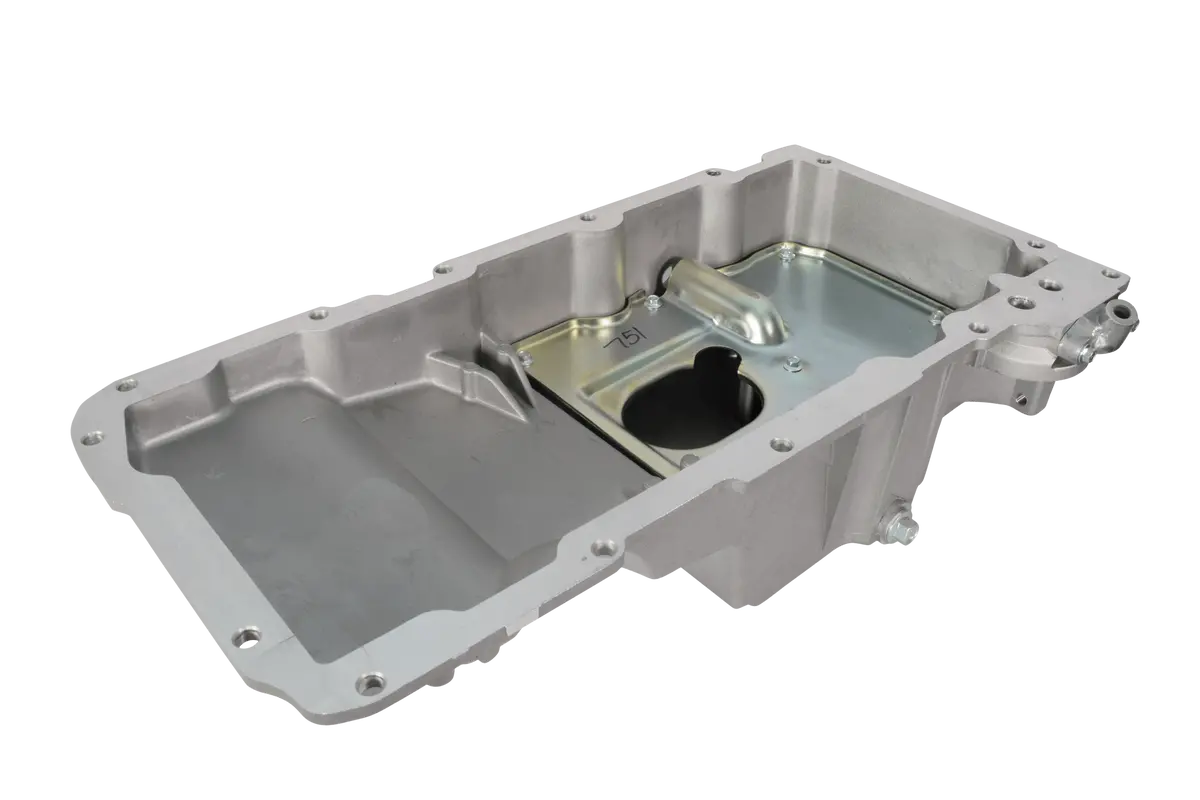

LS1 Camaro Oil Pan

Compatible with oil pickup tube CHI-12558251 (or modify existing tube)

• Cast Aluminum
• Package Includes: oil pan, drain plug, oil cooler block off plate, lower pan – steel baffle plate
• Uses oil filter PF46E

Compatible with these vehicles

• 1998, 1999, 2000, 2001, 2002 Chevy Camaro Z28 / SS (Pontiac Firebird Formula / Trans Am WS6)

Compatible with (based on vehicle 3D scans using ICT engine mounts)

• Chevrolet Camaro           70-92
• Chevrolet Corvette C3     68-82
• Chevrolet Corvette C4     84-96
• Chevrolet Truck                47-55
• Chevrolet Truck                67-87
• Ford Mustang                  79-93

*** NOT Compatible with Truck windage tray (LM7 LR4 LQ4 L59 LQ9 LM4 L33 LH6 L92 L76 LY2 LY5 LY6 LC9 LFA LH8 LMG L98 L9H L20 L94 LZ1 L99 L96 LC8 L77)

***Windage tray will need to be cut back to second main cap or use LS1 camaro windage tray
